Drawout Panel

In the case of active plants, there frequently is not enough time to shut down an entire feeder before scheduling maintenance to continue operating without shutting down the rest of the facility. Drawout panels are therefore an excellent solution for meeting the needs of both your electrical distribution and motor control equipment.

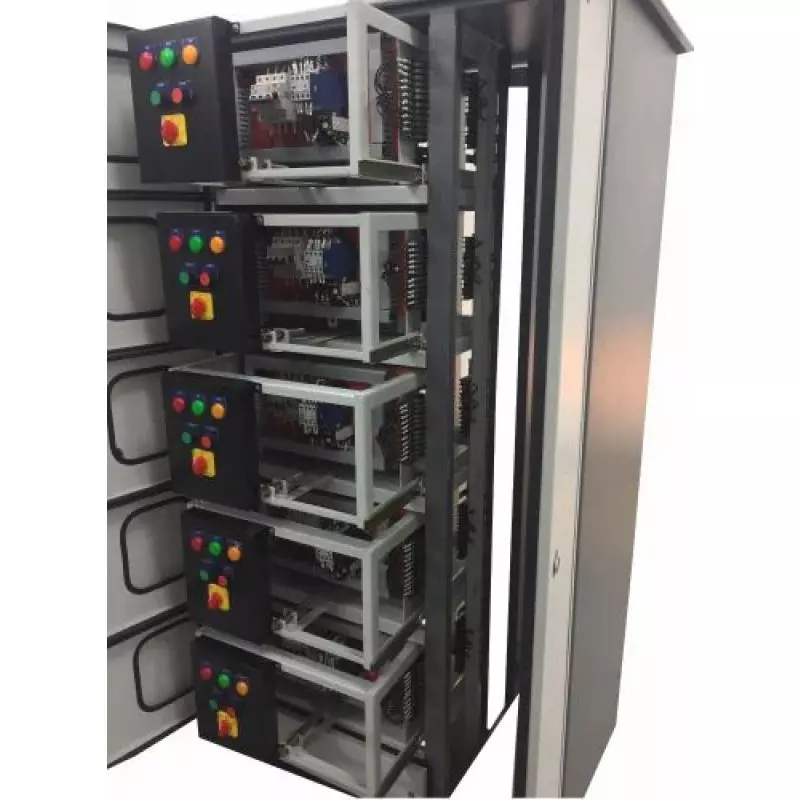

When we build drawout panels at Perfect Automation & Innovation, we design our drawout mechanism so mechanical interlocks ensure that the movement is effective and that the load is not racked when it is placed into the test position or fully drawn out of the electric panel. We also ensure our power and control contacts line up when inserted into a panel, thus providing long-term reliability for the end-user by utilizing quality materials and components.

The Busbar System maintains a fixed and segregated system of isolating live parts from the maintenance zone. Shuttering automatically closes when the module has been removed, providing the highest level of operator safety when inspecting the system. The cable terminations remain within the fixed section, so there is no need for any field wiring rework upon the removal and reinstallation of the panel.

The clear position indication and padlocking system have been designed to assist operators in achieving complete, correct Lockout/Tag-out procedures. The internal design is also suited to dissipating heat generated through extended continuous operation.

Provision for a motor feeder, ACB or MCCB incoming supply, metering and PLC connections will be done as required by the system.

These Drawout Panels are used extensively in process industry, utilities and critical infrastructure where fast replacement, reduced downtime, and safe maintenance can have a direct impact on uninterrupted production.
