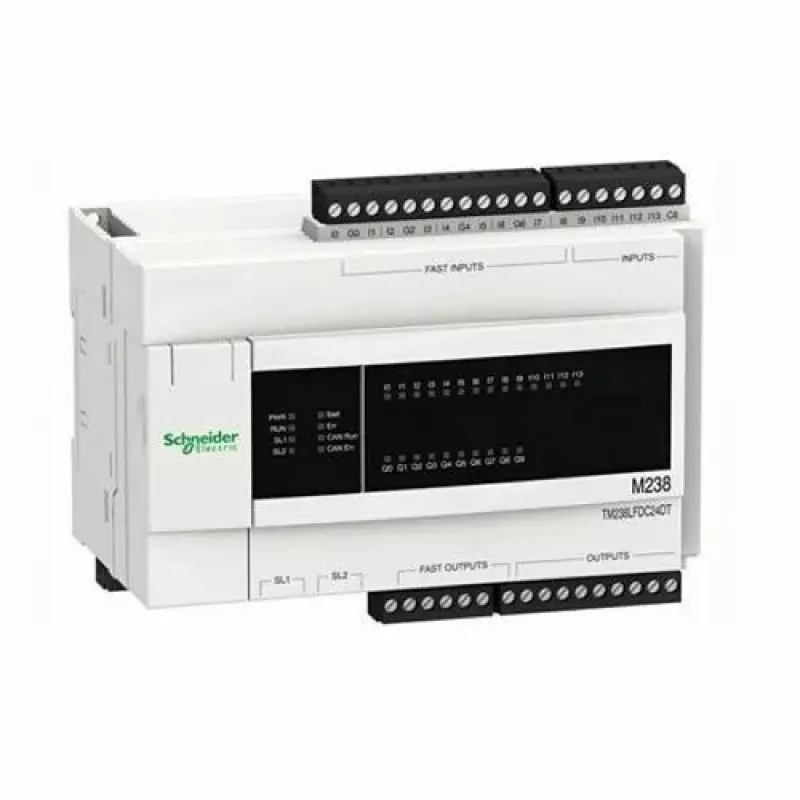

Schneider Modicon M238 PLC

Machine manufacturers typically have limited space inside the control panel, yet want a very quick control response, coordination of motion, and clear communications to the operator interface. The Schneider Modicon M238 is suitable when faced with those types of conditions. The design of this controller is compact, but also performs well. It is used on high-speed machines where timing accuracy and stability in executing logic function directly contribute to the quality of the end product.

The integrated motion functionality of the M238 controller reduces the need for additional external hardware, which will in turn simplify the overall layout of the control panel. Digital and analog handling of signals remains consistent even while the machine is cycling rapidly. Communication with drives, HMIs, and other remote devices is also smooth, which will allow for synchronized operation throughout the entire system. The processing speed is appropriate for multiple operations on an application to execute in parallel without causing any lag.

We put together the panel to optimize power/signal separation to prevent electrical noise from affecting the control accuracy. The wiring is kept organized to enable fast troubleshooting and modification in the future. The diagnostic functions provided during the initial start-up will help us troubleshoot problems in the field without taking the machine out of service for long periods of time.

Our PLC will work as efficiently in packaging machines, such as material handling systems, textile machines and automated production units, as it does at the control centre, allowing for quick machine response, minimizing idle time, and providing an easy way to expand the scope of functions at a later date.
