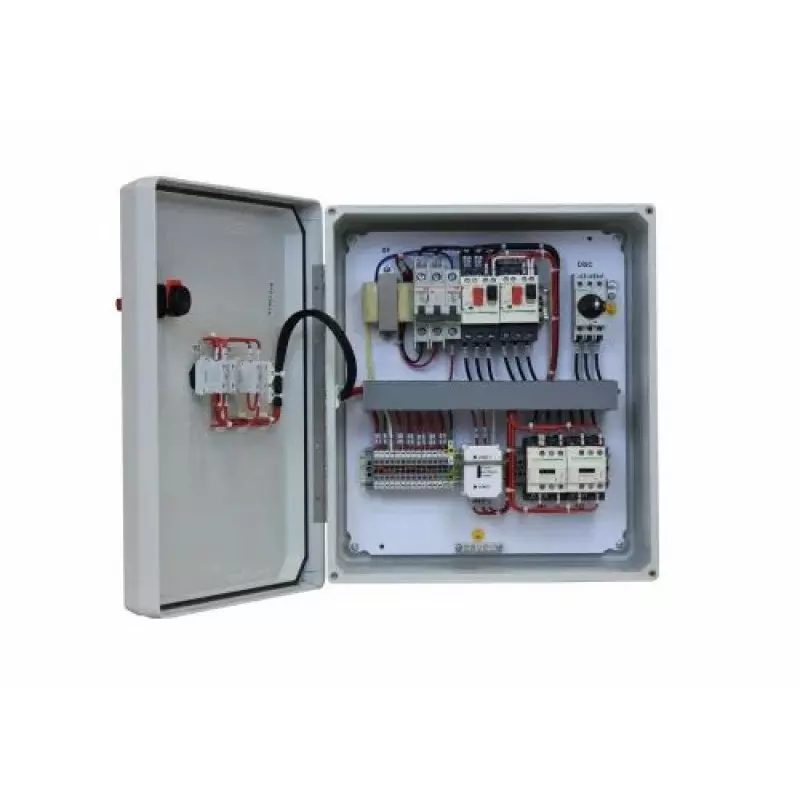

Relay Panel

Poor organization of relays can mean that control and protection systems aren't working effectively. RELAY PANELS are made for practical use in real life with clear labelling, easy access and reliability allowing for operators to manage circuits without surprise.

Relay Panels contain all the relays, with the relays being segregated from the control and power circuits to ensure proper mounting, clear labels on wiring to help prevent errors during the installation process. We confirm the contact rating, coil voltage and operation sequence based on true site load rather than on theoretical load calculations. Proper thermal considerations and ventilation are provided to help prevent overheating during continuous operation.

Relay panels are used in a variety of applications, including but not limited to motor control centres, power distribution boards, HVAC systems and processes plants. They provide a means of coordinating between protection devices and automating logic, as well as providing an adequate indication of status. Auxiliary contacts and timers can be included as needed in order to enhance control flexibility.

Our on-site support service will provide assistance on mounting and wiring checks functional testing and relay calibration. RELAY PANELS are intended for heavy-duty industrial environments and provide a high level of operational safety, support ease of troubleshooting, and reduce downtime. All units are fully tested and are ready for reliable use throughout North America.
