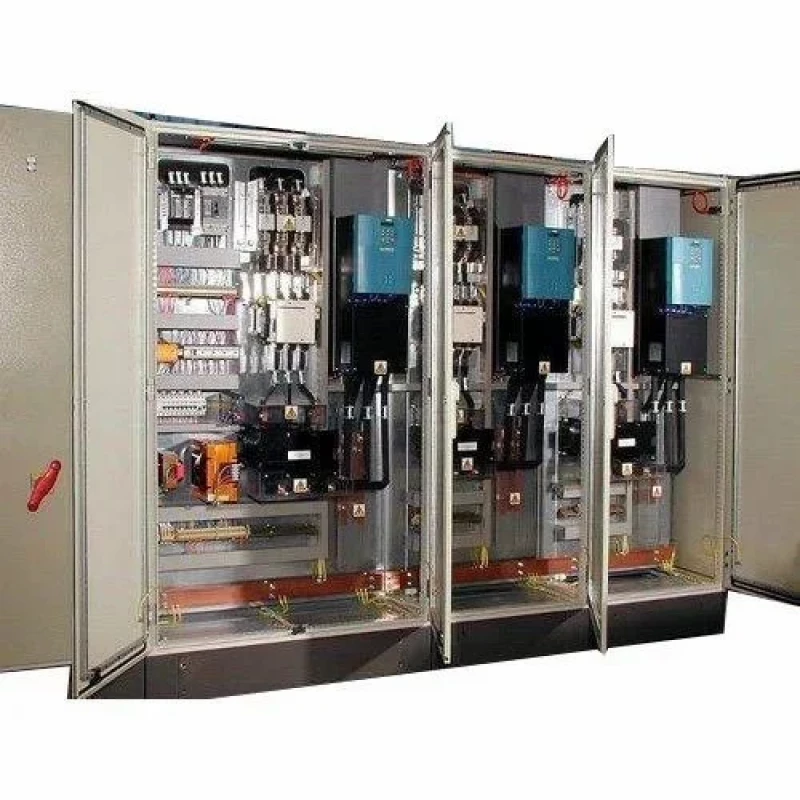

Thyristor Control Panel

The thyristor control panel is the correct solution for managing applications where electrical power needs to be controlled electronically and operated consistently under changing process conditions. Electrical loads that don't work well with mechanical switching require fast response, continuous smooth control and repeatable accuracy.

At Perfect Automation & Innovation we design and manufacture these panels specifically for process control applications using thyristor technology. Our products provide precise firing control, meaning that when the supply voltage fluctuates or is inconsistent, the load will continue to receive the same amount of power (fluids/electrical) through phase angle firing technology.

In addition to controlling the electrical load, proper air circulation and dissipation of heat is critical to ensuring optimal performance. Heat sink sizes, forced air cooling methods and heat transfer paths are taken into account during the design and layout phases.

Power and Control are separated into different areas to prevent electrical interference from affecting the Trigger Signal. The design has been developed to include over current, dV/dt and temperature protection along with line disturbance to ensure the long life of the product. The Indication and Manual Override were designed to give quick access during commissioning and when servicing.

All cable routing, Earthing and Shielding will be carefully carried out to ensure that the Signals remain stable in an industrial environment.

Options such as PLC interface, remote reference and process feedback loop may be provided as the application requires.

Thyristor Control Panels can be used in Heater Control Systems, Soft Start Heavy Loads, Electrochemical applications, and Temperature-Sensitive Applications where specific power regulation and response time are required to directly affect Product Quality and Economical Energy Use.
